How to set up GPU development for containers with Podman

In this article, learn how to set up your GPU development environment to run inside Podman. Most users can simply alias Docker to Podman (alias docker=podman) without any problems.

Podman supports the Container Device Interface.

The following is a compilation from sources, bug reports, GitHub repos that worked when I tried it on my laptop. Special thanks to henrymai who's README was significant help.

Definitions

  • Podman is a utility so you can create and maintain containers. Podman is a daemonless, open source, Linux native tool designed to make it easy to find, run, build, share and deploy applications using Open Containers Initiative (OCI) Containers and Container Images. See What is Podman,
  • CDI is an open specification for container runtimes that abstracts what access to a device, such as an NVIDIA GPU, means, and standardizes access across container runtimes. Popular container runtimes can read and process the specification to ensure that a device is available in a container. CDI simplifies adding support for devices such as NVIDIA GPUs because the specification is applicable to all container runtimes that support CDI.

Prerequisites

You will need to have:

  • Laptop or desktop with GPU
  • Device drivers installed
  • WSL installed. (I installed a fresh distribution of Ubuntu.)
  • Visual Studio Code (or other Linux text editor)
  • The username

To check the version you have installed use:

podman --version

See Install NVIDIA GPU display driver for details.

Upgrade Ubuntu

sudo apt update && sudo apt upgrade

# get release version
ubuntu_release=lsb_release -r
$ubuntu_release

Install podman

You will also need Podman installed. Start WSL, then run

sudo apt remove docker docker-engine docker.io containerd runc
sudo apt install --no-install-recommends apt-transport-https ca-certificates curl gnupg2
sudo apt -y install podman
podman version

You should see something like this:

WARN[0000] "/" is not a shared mount, this could cause issues or missing mounts with rootless containers
Client:       Podman Engine
Version:      4.9.3
API Version:  4.9.3
Go Version:   go1.22.2
Built:        Wed Dec 31 16:00:00 1969
OS/Arch:      linux/amd64

Important

The version of Podman should return a version greater than 4.9. Updating the Windows host does not update the version of Podman running in your distribution. In my case, I created a new distribution to get the latest version (as of the time of this writing).

Start Podman

To start Podman the first time, run:

podman machine init
podman machine start

Add docker.io registry

echo 'unqualified-search-registries = ["docker.io"]' | sudo tee /etc/containers/registries.conf

Run a container from Podman

Run a sample container in Podman.

podman run -it --rm busybox

You should see:

Resolved "busybox" as an alias (/etc/containers/registries.conf.d/shortnames.conf)
Trying to pull docker.io/library/busybox:latest...
Getting image source signatures
Copying blob ec562eabd705 done   |
Copying config 65ad0d468e done   |
Writing manifest to image destination
/ #

Type exit.

podman run ubi8-micro date

Or

podman run ubi8-micro date

You should see today's date.

Install Toolkit or Toolkit Base

You will need to install either the NVIDIA Container Toolkit or you installed the nvidia-container-toolkit-base package.

Get the Ubuntu version

. /etc/os-release
echo "$VERSION_ID"

To install the NVIDIA container toolkit, run:

  1. Configure the production repository:

distribution=ubuntu + echo "$VERSION_ID"
curl -s -L https://nvidia.github.io/libnvidia-container/gpgkey | sudo apt-key add - && curl -s -L https://nvidia.github.io/libnvidia-container/$distribution/libnvidia-container.list | sudo tee /etc/apt/sources.list.d/nvidia-container-toolkit.list
2. Update the packages list from the repository:

sudo apt-get update
3. Install the NVIDIA Container Toolkit packages:

sudo apt-get install nvidia-container-toolkit

You will see the Container Toolkit install beginning with something like this:

Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following additional packages will be installed:
  libnvidia-container-tools libnvidia-container1 nvidia-container-toolkit-base
The following NEW packages will be installed:
  libnvidia-container-tools libnvidia-container1 nvidia-container-toolkit nvidia-container-toolkit-base
0 upgraded, 4 newly installed, 0 to remove and 3 not upgraded.

For more information, see Installing the NVIDIA Container Toolkit.

Set the rootless configuration for Container Device Interface

Set the NVIDIA container runtime to run as rootless. This sets you up for Podman's ability to manage containers without root access.

  1. Generate the CDI specification file:
sudo nvidia-ctk cdi generate --output=/etc/cdi/nvidia.yaml

You will see some output similar to:

INFO[0000] Using /usr/lib/wsl/lib/libnvidia-ml.so.1
INFO[0000] Auto-detected mode as 'wsl'
INFO[0000] Selecting /dev/dxg as /dev/dxg
INFO[0000] Using WSL driver store paths: [/usr/lib/wsl/drivers/nvlti.inf_amd64_70bff6400ff3c791 /usr/lib/wsl/drivers/u0390955.inf_amd64_53cfc5cd131b06d4]
...
INFO[0000] Selecting /usr/lib/wsl/drivers/nvlti.inf_amd64_70bff6400ff3c791/nvidia-smi as /usr/lib/wsl/drivers/nvlti.inf_amd64_70bff6400ff3c791/nvidia-smi
INFO[0000] Generated CDI spec with version 0.8.0
  1. Check the names of the generated devices:
nvidia-ctk cdi list

You should see something similar to:

INFO[0000] Found 1 CDI devices
nvidia.com/gpu=all
  1. Run a workload with CDI
podman run --rm --device nvidia.com/gpu=all --security-opt=label=disable ubuntu nvidia-smi -L

You should see something similar to:"

GPU 0: NVIDIA GeForce RTX 3060 Laptop GPU (UUID: GPU-fbeb177f-f196-93e0-b215-12b7c899dc82)

Running GPU workloads

When it comes time to run you workloads, you will use something simlar to:

podman run --rm --device nvidia.com/gpu=all --security-opt=label=disable ubuntu nvidia-smi
The important parameters:

  • --device nvidia.com/gpu=all Add a host device to the container.
  • --security-opt=label=disable Turn off label separation for the container.
  • -p port forwarding.

If you have more than one GPU available, you can specify which one using:

podman run --rm \
    --device nvidia.com/gpu=0 \
    --device nvidia.com/gpu=1:0 \
    --security-opt=label=disable \
    ubuntu nvidia-smi -L

Increase memlock and stack ulimits [optional]

This is necessary otherwise any reasonable sized training run will hit these limits immediately.

Use:

code /etc/security/limits.conf

Assuming your username is someuser:

someuser soft memlock unlimited
someuser hard memlock unlimited
someuser soft stack 65536
someuser hard stack 65536

To build your container

Look up the latest version of nvidia/cuda on docker.io. See nvidia/cuda on DockerHub. In my case, I found cuda:12.6.0-cudnn-devel-ubuntu20.04

podman pull nvidia/cuda:12.6.0-cudnn-devel-ubuntu20.04
podman run --rm --device nvidia.com/gpu=all --security-opt=label=disable nvidia/cuda:12.6.0-cudnn-devel-ubuntu20.04 nvidia-smi

The command requests the full GPU with index 0 and the first MIG device on GPU 1. The output should show only the UUIDs of the requested devices.

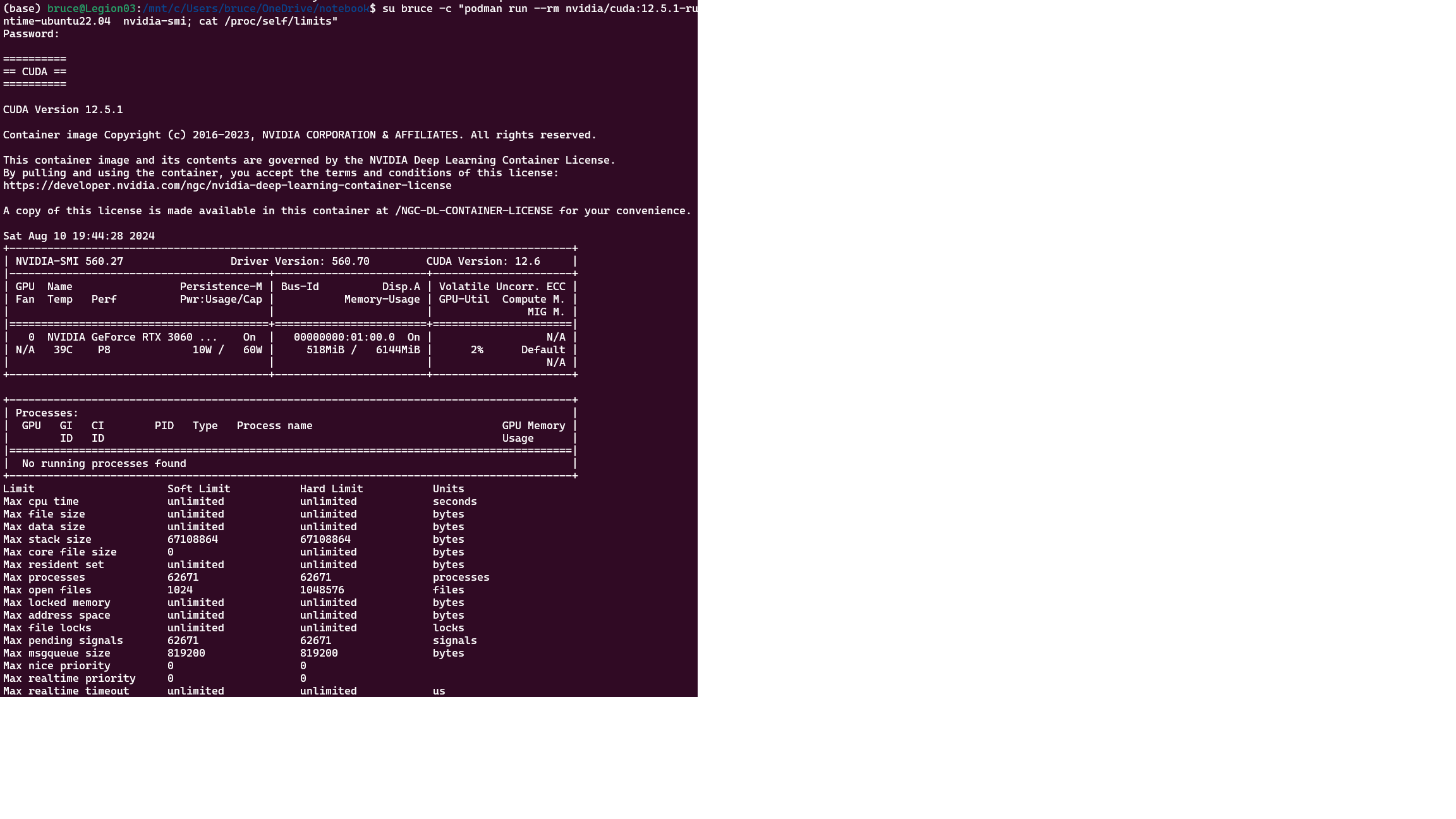

podman runs cuda

Resources

See:
